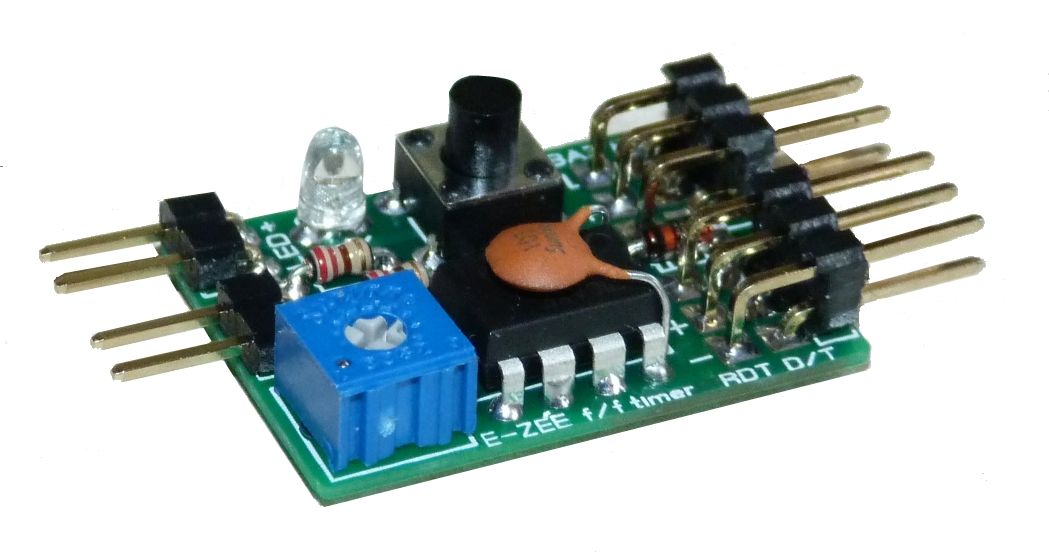

E-ZEE combined IC servo operated engine cutoff and DT Timer


E-ZEE combined IC servo operated engine cutoff and DT Timer



Powered from an on-board battery, the timer controls engine run-time (via a fuel cut-off servo) and after a further delay drives a D/T servo to terminate the flight.

Engine run and D/T periods are set by using the timer mounted button and LED

The timer has an RDT interface which both powers the RDT receiver and processes its trip signal, allowing flights to be terminated at will.
Key Features

• Engine run duration adjustable 1 to 60 seconds set in 1 second increments
• D/T duration adjustable 10 seconds to 10 minutes, set in 10 second increments
• Throttle servo travel setting adjustable from zero to full throttle
• Engine run down (RC throttled engine) adjustable 0 to 10 seconds
• Option to reverse DT servo direction of rotation to suit installation in model
• RDT compatible
• Push button immediately stops the engine at any point during the flight profile
• Duration settings saved in memory so a single button push can repeat the flight.
• Provision to fit remote pushbutton and remote LED
• Operable from a single cell Li-Po battery (nominal 3.7v) max voltage 5.5v
• Battery health monitoring with visible indication of state of charge
• Low voltage cut-out prevents flight or operates DT during flight to avoid fly-away

PCB Dimensions

Length 34mm Width 20mm Height 11mm
Weight 4gm

For installations where the timer is inaccessible remote pushbuttons and LED’s are available

The timer is supplied with a comprehensive instruction manual and users guide
